How Does a Valve Bag Filler Work? An Engineering Deep Dive

What if a 1% deviation in bag weight is actually costing your facility $50,000 in lost product every year? For 85% of bulk material processors, inaccurate fills and excessive dust are often accepted as unavoidable costs, but these inefficiencies directly impact your bottom line. You understand that maintaining a clean facility and achieving 99.5% weight accuracy is essential for a profitable operation. This engineering deep dive explains exactly how does a valve bag filler work to deliver the precision and speed your production line demands.

Since 1978, Choice Bagging Equipment has focused on building reliability into every machine we manufacture. You’ll discover the physics behind air, auger, impeller, and gravity filling methods to see which one handles your specific powders or granules most effectively. We’ll also break down the internal sealing process that minimizes dust and protects your staff. If you’re ready to upgrade your efficiency, use our Bagger Professor tool to find the right mechanical fit, or contact us to discuss your specific application.

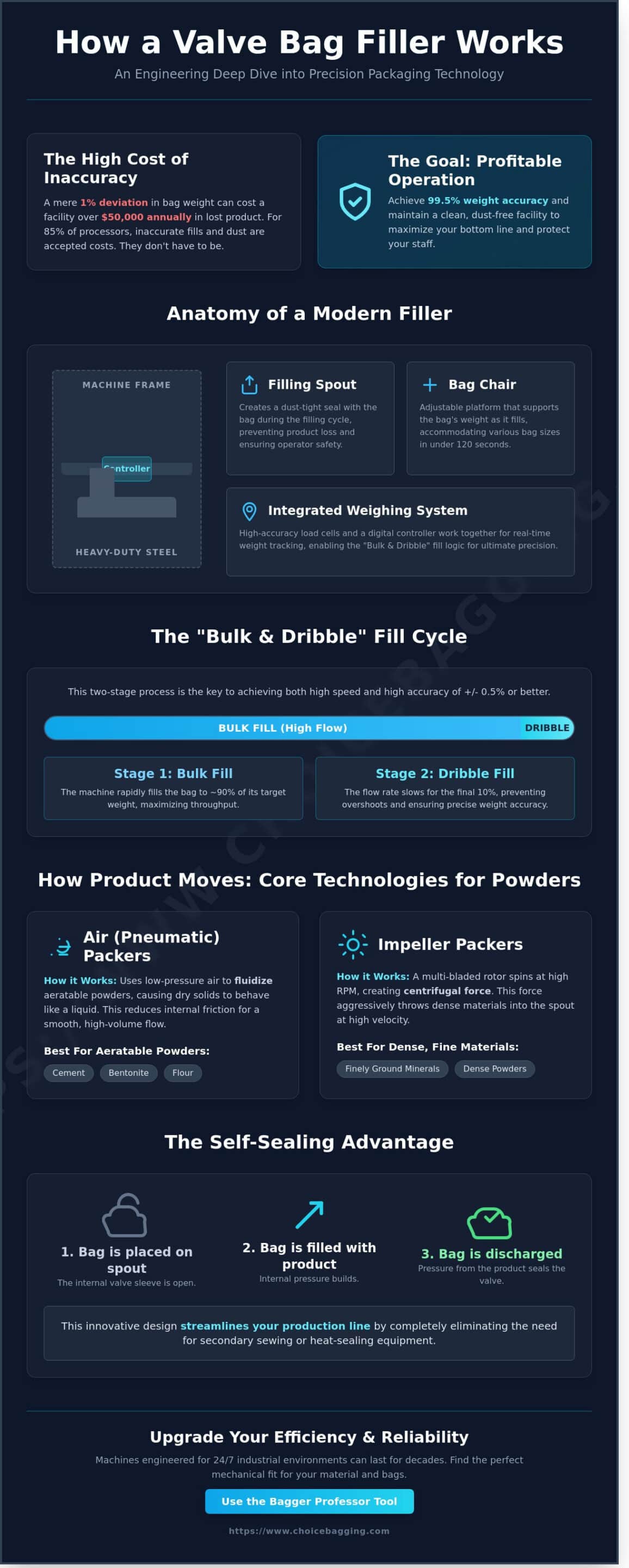

The Anatomy of a Valve Bag Filler: Core Components

A valve bag filler is a specialized industrial machine designed to inject dry bulk materials into a pre-pasted bag through a small corner opening. These systems provide a high-speed, dust-free solution for packaging powders, granules, and minerals. Understanding how does a valve bag filler work starts with recognizing its core purpose: delivering precise weight accuracy while maintaining a clean workspace. Most modern facilities choose between gross weigh and net weigh architectures. In a gross weigh system, the product is weighed inside the bag as it fills. A net weigh system pre-measures the material in a internal hopper before discharging it into the bag.

To better understand the mechanical motion and physical layout of these systems, watch this helpful video:

The foundation of any reliable machine is a heavy-duty frame, typically constructed from structural carbon steel or stainless steel. At Choice Bagging Equipment, we’ve seen machines built in 1978 still operating in 2024 because they were engineered for 24/7 industrial environments. These machines are often categorized among various types of filling machines found in the dry bulk industry, specifically designed to handle the unique challenges of vented or non-vented valve bags.

The Filling Spout and Bag Chair

The filling spout is the critical interface between the machine and the packaging. It creates a dust-tight seal during the filling cycle to prevent product loss and protect operator health. Below the spout, the bag chair supports the weight as the bag expands from a flat profile to a filled 50-pound or 100-pound container. Adjustable chairs are a standard requirement, allowing operators to switch between different bag heights in under 120 seconds. If you’re unsure which configuration fits your facility, use the Bagger Professor tool to narrow down the options based on your specific material and bag type.

The Integrated Weighing System

Precision is managed by high-accuracy load cells that communicate with a digital controller for real-time weight tracking. To achieve a typical accuracy of +/- 0.5% or better, the system utilizes a “bulk and dribble” flow concept. The controller starts the fill cycle at a high flow rate to reach 90% of the target weight quickly. It then switches to a slower “dribble” feed for the final 10% to ensure the machine doesn’t overshoot the target. This logic ensures every bag meets strict quality standards and minimizes product giveaway. If you’d like to discuss a custom application for your plant, contact us to speak with an application engineer. Knowing how does a valve bag filler work at a component level is the first step in choosing a system that will last for decades.

Four Core Technologies: How Product Moves into the Bag

Understanding how does a valve bag filler work requires looking at how the machine overcomes the unique physical properties of your material. Gravity isn’t always enough. Bulk density and flowability determine which of the four primary technologies is required for a reliable, repeatable fill. Since 1978, we’ve refined these methods to ensure that whether you’re bagging fine flour or heavy minerals, the machine maintains 100% accuracy and speed.

Air and Impeller Methods for Powders

Air packers, also known as pneumatic packers, use low-pressure air to fluidize aeratable powders like cement, bentonite, or flour. By introducing air into the pressure chamber, the machine makes dry solids act like a liquid. This reduces internal friction and allows the product to flow through the spout at high volumes. Many high-performance systems incorporate patented valve bag filling technology to manage the air-product mixture and ensure the bag doesn’t leak during the transition from the spout to the pallet.

Impeller packers take a more aggressive approach for dense, finely ground minerals. These machines use a multi-blade rotor spinning at high RPMs to create centrifugal force. This force throws the material into the spout at high velocities, which is essential for products that don’t fluidize well under air pressure alone. If you’re unsure which technology fits your specific material, you can use the Bagger Professor Tool to identify the ideal equipment for your application based on your product’s flow characteristics.

Auger and Gravity Methods for Granulars

Auger packers rely on mechanical displacement. A screw-driven mechanism physically pushes the product through the spout into the bag. This method provides positive displacement; for every revolution of the auger screw, a specific volume of product moves forward. It’s the industry standard for difficult-to-handle blends or materials that tend to bridge or clog in a hopper. Auger systems are built for durability and provide the consistency needed for non-fluidizable materials that require a steady, forced flow.

Gravity fillers are the most straightforward and cost-effective option for many operations. These machines leverage the natural fall of free-flowing granular materials. Common examples include:

• Plastic pellets
• Seeds and grains
• Sand and gravel
• Fertilizer prills

Because they lack complex mechanical drives or high-pressure air compressors, gravity fillers have the fewest moving parts and the lowest maintenance needs. They’re often the choice for 95% of free-flowing pellet applications because of their simplicity and long-term reliability. You can explore our full range of heavy-duty Valve Bag Fillers to see these technologies in action.

Choosing the right movement technology ensures your bagging line operates at peak efficiency without unnecessary downtime. If you need a partner to help evaluate your material’s bulk density and flow rate, contact us today to speak with an application engineer about a custom solution.

The Self-Sealing Mystery: How the Valve Function Works

One of the most common questions our engineers answer is: how does a valve bag filler work without a sewing machine? Unlike open-mouth bags that require a secondary operation like sewing or heat sealing, valve bags arrive at the machine pre-sealed on all sides except for one small opening. This design eliminates the need for expensive closing equipment and reduces the overall footprint of your bagging line. The valve itself is a pre-manufactured sleeve integrated into the top corner of the bag. Since 1978, we’ve seen this design save processors up to 30% in labor costs by streamlining the finishing process.

As the bag fills, the internal pressure of the product pushes directly against the sleeve. This interaction creates a sift-proof closure through a combination of friction and material tension. The chemical and physical properties of the sleeve material, often made from high-friction polyethylene or reinforced paper, ensure that the product doesn’t leak out once the bag is removed from the spout. This is why understanding how does a valve bag filler work is essential for any facility looking to improve cleanliness and efficiency.

Internal vs. External Valves

The standard internal tuck-in valve is the industry norm for approximately 85% of dry bulk applications. It sits inside the bag and is completely hidden once the bag is full. For certain manual operations, an external “tuck-under” version is used, allowing operators to manually fold and tuck the sleeve for an extra layer of security. When you’re handling hazardous chemicals or ultra-fine powders that demand a 100% dust-tight finish, we often add an ultrasonic sealer to the system. Choice Bagging Equipment provides industry-leading expertise in bag sealing to ensure your product remains contained and protected during long-distance transit.

The Physics of the Internal Flap Seal

The sealing mechanism operates on the “check valve” principle, where product back-pressure locks the sleeve shut. As the bag fills and takes on its final square shape, the material inside exerts force in all directions. This internal mass presses the flexible sleeve flat against the top of the bag wall. The square geometry of a filled valve bag is critical here; it provides the structural resistance necessary to maintain that sealing force during palletizing and shipping. The valve flap is a passive mechanical closure activated by the product’s own mass.

We’ve found that the specific density and flow characteristics of your material determine which valve type will perform best. To help you identify the right equipment for your specific product, you can use the Bagger Professor tool, which is a functional resource designed to narrow down your machinery options. By matching the right bag design with our precision-engineered fillers, we’re not just your supplier; we’re also your partner in achieving a clean, reliable, and high-performing production line.

The Step-by-Step Filling Cycle in a Modern Facility

To understand how does a valve bag filler work, you must look at the precision-timed sequence that governs every bag. In a high-performance facility, a standard cycle completes in 5 to 15 seconds. This speed depends on the material’s bulk density and whether your operation uses manual or robotic bag placement. Every millisecond is engineered to balance high throughput with the pinpoint accuracy required for industrial packaging.

• Step 1: Bag Placement — The operator or a robotic arm slides the bag valve onto the filling spout. This starts the automated sequence.
• Step 2: Clamping and Taring — Pneumatic clamps secure the bag to the spout to create a dust-tight seal. The integrated load cells then tare the weight, zeroing the scale to ensure only the product weight is measured.
• Step 3: High-Flow Filling — The machine initiates “bulk” speed. It moves material rapidly to reach approximately 90% of the target weight as quickly as possible.
• Step 4: Dribble Feed and Cut-off — The flow slows to a fine “dribble” for the final few pounds. This ensures the system hits the exact weight before the primary valve closes, typically achieving accuracy within plus or minus 0.5%.

If you’re unsure which machine configuration fits your specific product, the Bagger Professor tool is a functional resource that helps you narrow down the right equipment based on your material and bag type.

De-aeration and Dust Collection

Managing displaced air is a critical part of how does a valve bag filler work. As material enters the bag, air must be vented out to prevent the bag from “ballooning” or bursting. Choice Bagging Equipment designs include integrated dust collection ports that capture airborne particles at the source. This focus on clean operation is a hallmark of our American-made designs, ensuring a safer and more efficient workspace for your team.

Discharge and Conveying

Once the load cells confirm the target weight, the machine automatically releases the bag. The bag typically drops onto bag handling conveyors for downstream processing. This step integrates seamlessly with robotic palletizing systems for facilities looking to achieve full automation. Since 1978, we’ve focused on building these integrated systems to ensure that your production line never hits a bottleneck.

CBE is more than a manufacturer; we’re your partner in long-term operational success. If you’re ready to optimize your facility’s filling cycle, contact us today to request a quote.

Maximizing Reliability: Why Engineering Knowledge Matters

Engineering isn’t just about the initial purchase; it’s about the decades of production that follow. When maintenance teams understand how does a valve bag filler work at a fundamental level, they stop reacting to unexpected breakdowns and start predicting wear patterns. CBE machines are engineered with a specific focus on simplicity, utilizing minimal moving parts to eliminate common mechanical failure points. This design philosophy ensures your production line stays active even in the most demanding industrial environments.

Using genuine parts is critical for maintaining original engineering tolerances. A deviation as small as 0.010 inches in a wear plate or impeller blade can lead to product leakage or weight inaccuracies. Our “Made in the USA” commitment translates to tangible durability. While some manufacturers utilize thin sheet metal, we use 1/4-inch or 3/8-inch heavy gauge steel for our frames and enclosures. This heavier construction absorbs operational vibrations and resists the abrasive nature of minerals, sands, and chemicals.

Maintenance of Displacement Components

Identifying high-wear areas is the first step in a proactive maintenance plan. In an impeller-fed system, the impeller liners and blades bear the brunt of material velocity and should be inspected monthly. For auger systems, the leading edges of the auger flights typically show thinning first. Gaining a technical grasp of how does a valve bag filler work allows operators to recognize subtle changes in machine harmonics before a part fails. We recommend checking spout seals every 40 hours of operation. A worn seal allows air to escape improperly, which directly impacts the scale’s ability to provide a clean weight cutoff. If you’re uncertain which machine fits your specific material density, the Bagger Professor tool is a functional resource to help narrow down equipment based on your product’s flow characteristics.

The CBE Partnership Since 1978

Choice Bagging Equipment has operated as a trusted manufacturer since 1978. We don’t simply ship a machine and move on; we act as your long-term production partner. Our engineering support team helps integrate fillers into complex, multi-stage systems, ensuring that upstream supply and downstream palletizing work in perfect harmony. This level of collaborative engineering is why 85% of our clients return to us when it’s time to expand their facilities. When you’re ready to improve your packaging efficiency and invest in a system built to last for decades, Request a Quote for a custom-engineered solution tailored to your facility.

Optimize Your Packaging Performance

Understanding how does a valve bag filler work provides the engineering foundation needed to optimize your facility’s throughput. From the precision of the self-sealing valve to the specific pneumatic force used to move product, every component must function in perfect harmony. Since 1978, we’ve focused on these technical details to ensure your equipment handles specific material characteristics without fail. We build our machines using heavy-duty US steel because we know your operation requires hardware that lasts for decades, not just years.

Selecting the right technology doesn’t have to be a manual process. You can use our Bagger Professor tool to quickly identify which machine fits your specific bag type and material. Whether you’re integrating a single station or a full production line, expert support is vital for long-term reliability. Our team provides the custom engineering and integration expertise you need to maintain peak efficiency every day.

Invest confidently in your production line. Contact Choice Bagging Equipment today. We look forward to helping you build a more profitable and dependable operation.

While the term ‘filler’ in an industrial context refers to precision machinery, in other specialized fields like aesthetic medicine, it describes high-grade medical supplies. For practitioners in that sector, sourcing from a trusted online retailer like Confidence Fillers is crucial for maintaining their own standards of quality and precision.

Frequently Asked Questions

How accurate are valve bag filling machines?

Modern valve bag fillers deliver exceptional precision, typically achieving weights within +/- 0.25 to 0.5 pounds for a 50-pound bag. This accuracy depends on the integrated load cells and the controller sensitivity. Choice Bagging Equipment systems utilize high-resolution digital scales to ensure you meet strict weight tolerances. Precise filling reduces product giveaway and improves your bottom line, especially when handling high-value materials like specialty chemicals.

Can one valve bag filler handle multiple different products?

You can use a single machine for multiple products if their flow characteristics remain similar. For example, an air packer handles various fine powders and granular materials by adjusting the fluidizing pressure. If you switch from a fine powder to a heavy aggregate, you’ll likely need different spout sizes or internal settings. Use our Bagger Professor tool to determine if your specific materials are compatible with a single machine configuration.

How many bags per minute can a valve bag filler achieve?

Throughput depends on the product density and the machine type, but a single-spout filler typically achieves 3 to 8 bags per minute. High-speed electronic air packers can reach up to 12 bags per minute for 50-pound units. If you need higher volumes, you can install multiple spouts in a parallel configuration. Understanding how does a valve bag filler work at these speeds requires looking at the automation of the fill cycle and bag discharge.

What is the difference between gross weigh and net weigh valve fillers?

Gross weigh fillers weigh the material and the bag together during the filling process, while net weigh systems pre-weigh the material in a separate internal hopper. Gross weigh systems are more compact and cost-effective for rates under 10 bags per minute. Net weigh systems offer higher speeds because the next dose is weighed while the operator is still handling the previous bag. This distinction is a key part of how does a valve bag filler work in high-production environments.

Do valve bags leak after they are filled?

Valve bags are designed to be self-sealing, but 100% containment depends on the valve type and product fineness. An internal tuck-in valve provides a secure closure for most granular products. For hazardous or ultra-fine powders, we recommend using ultrasonic sealing technology. This process welds the valve shut, ensuring zero leakage and a tamper-evident finish for your customers. It’s a reliable solution for maintaining a clean warehouse environment and reducing waste.

How often do I need to replace the filling spout or auger?

Maintenance intervals vary based on the abrasiveness of your material, with most spouts lasting 12 to 24 months in standard applications. If you’re bagging abrasive minerals like silica sand, you’ll likely need to inspect and replace hardened steel components every 6 months. We design our machines with minimal moving parts to reduce these costs. Regularly checking for wear ensures your fill weights remain consistent and your seals stay tight throughout the year.

Is a valve bag filler better than an open-mouth bagger for powders?

Valve bag fillers are superior for fine powders because they operate in a closed-loop system that significantly reduces airborne dust. The filled bag is more rectangular and compact than an open-mouth bag, which improves pallet stability by 20%. This design allows you to stack pallets 3 levels high safely. Open-mouth baggers are better for large chunks or fibrous materials that won’t flow through a narrow valve, but they don’t offer the same level of dust control.

How much compressed air is required to operate an air packer?

An industrial air packer typically requires 15 to 20 cubic feet per minute (CFM) of clean, dry air at a constant 80 PSI. This air volume powers the fluidizing chamber and the pneumatic cylinders that control the bag clamps and discharge. Since 1978, we’ve optimized these systems to minimize air consumption while maintaining high performance. For more information on system requirements or a specific equipment consultation, contact us to speak with an application engineer.
