A single centimeter of misalignment or a 5 PSI drop in compressed air can compromise your bagging accuracy for years. Since 1978, we’ve seen how a rushed setup leads to chronic dust leakage and costly weight variations. You likely agree that your packaging line’s ROI depends on a foundation of precision and stability. This guide teaches you exactly how to install a valve bag filler to ensure 99.7% weight accuracy while meeting strict 2026 safety standards.
We’ll walk through the technical requirements for pneumatic systems and structural anchoring. You’ll learn to integrate your new equipment with existing conveyors and palletizers for a seamless workflow. By the end of this article, you’ll have the confidence to complete a professional integration that protects your investment. For personalized support, you can always contact us to speak with an application engineer.
Key Takeaways
-
Conduct a thorough assessment of floor-load capacity and utility requirements to ensure your facility is ready for high-performance bagging equipment.
-
Learn the essential mechanical steps for how to install a valve bag filler, focusing on precision leveling and anchoring to eliminate vibration-induced errors.
-
Achieve unmatched weight accuracy by mastering multi-point calibration procedures and zeroing load cells with certified test weights.
-
Streamline your production flow by synchronizing your filler with robotic-palletizing-systems and downstream automation.
-
Ensure long-term reliability through preventative maintenance and use the Bagger Professor tool to select the right equipment for your specific material needs.
Table of Contents

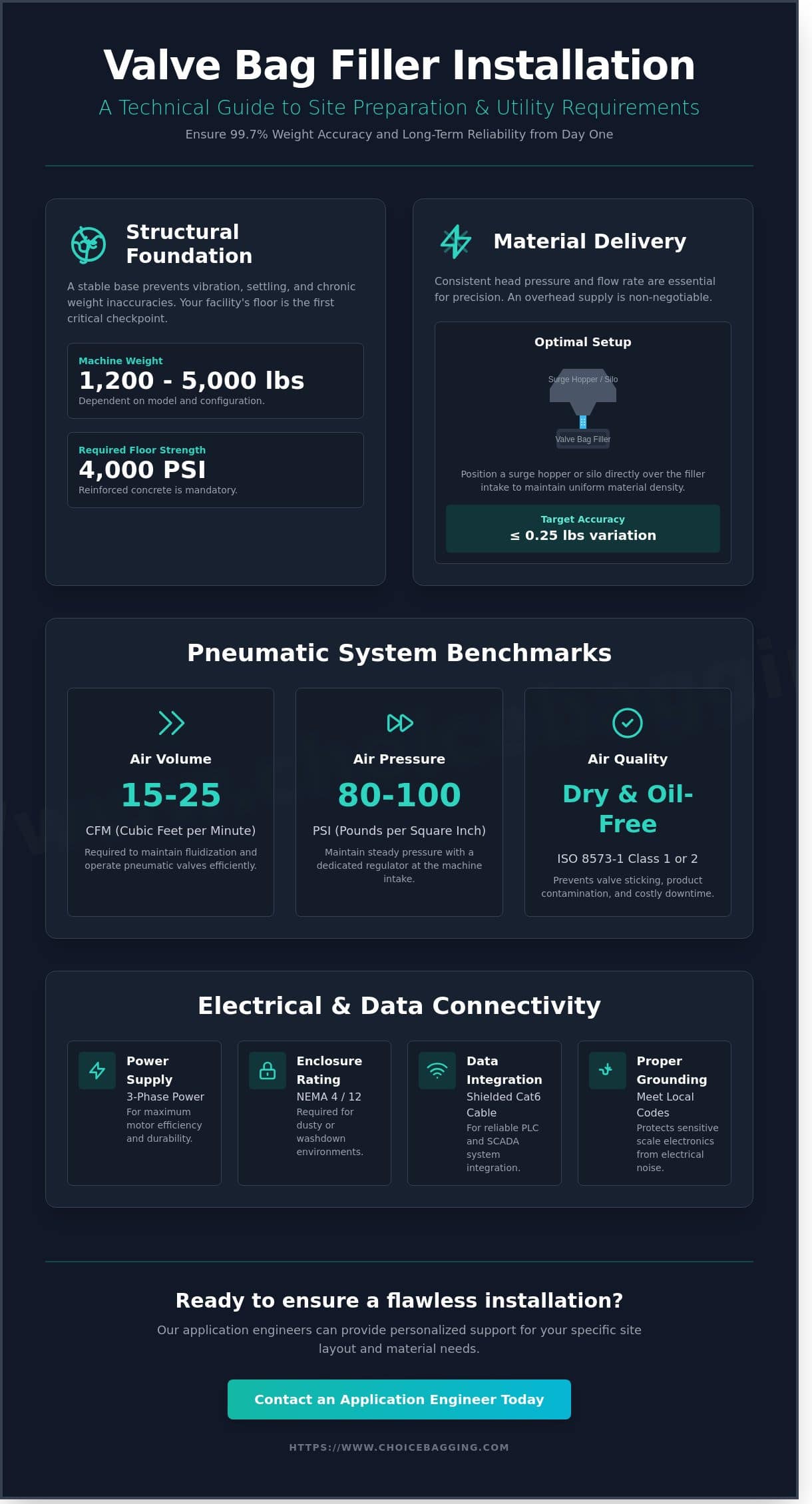

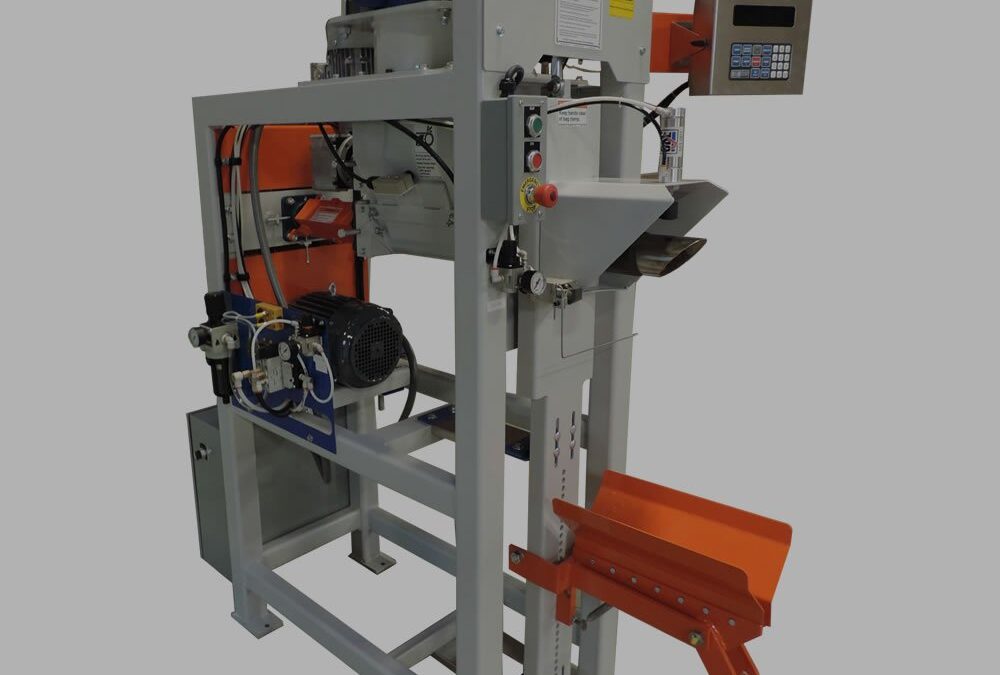

Site Preparation and Technical Utility Requirements
Successful integration starts long before the machinery arrives at your loading dock. Understanding how to install a valve bag filler begins with a rigorous evaluation of your facility’s physical infrastructure. A standard industrial valve bagger can weigh between 1,200 and 5,000 pounds depending on the configuration. This concentrated weight requires a reinforced concrete floor, typically rated for at least 4,000 PSI, to prevent settling or vibration issues during high-speed cycles. As a key category of Packaging machinery, these systems demand precise alignment with your existing material delivery infrastructure to maintain consistent head pressure and flow rates.
To better understand the scale and integration of these systems, watch this demonstration of a Model 2450 Sonic Seal Valve Bag Filler:
Properly planning how to install a valve bag filler includes designing a material delivery system that ensures a constant supply of product above the machine. You’ve got to position a surge hopper or silo directly over the filler intake. This setup maintains uniform material density, which is critical for achieving weight accuracy within 0.25 pounds or better. If you’re unsure which machine matches your product’s flow characteristics, the Bagger Professor tool provides a functional way to narrow down the equipment options based on your specific material data.
Compressed Air and Pneumatic Benchmarking
Pneumatic reliability is the backbone of high-performance bagging. Most valve baggers rely on pneumatic actuators for bag clamping and discharge. You’ll need to verify your compressor can handle the specific demands of your chosen system:
-
Air Volume: An air-packer system typically requires 15 to 25 CFM (Cubic Feet per Minute) to maintain the fluidization process and operate pneumatic valves.
-
Consistent Pressure: Plan for a dedicated air regulator at the machine intake to maintain a steady 80 to 100 PSI during high-speed cycles.
-
Air Quality: Use dry, oil-free air (ISO 8573-1 Class 1 or 2). Moisture in the lines causes valve sticking and can contaminate your product, leading to costly downtime.
Electrical and Data Connectivity Standards
Electrical specifications must be established early to avoid tripping breakers during motor startup. Most industrial fillers since 1978 have utilized 3-phase power for maximum efficiency and durability. Ensure your installation site meets NEMA 4 or NEMA 12 standards if you’re operating in a dusty environment. If you’re connecting to a centralized SCADA system, run shielded Cat6 cable for PLC integration. This allows for real-time data tracking and remote troubleshooting. Always verify that your grounding protocols meet local codes to prevent electrical noise from interfering with the sensitive digital scale electronics. For specific technical assistance regarding your site layout, contact our engineering team today.
Step-by-Step Mechanical Installation of the Filler
The mechanical setup phase is the foundation of your bagging operation’s long-term reliability. Once the equipment arrives at your facility, the first step in how to install a valve bag filler is a rigorous inspection. Remove all crating materials and check the frame for any hardware that might’ve loosened during transit. Since 1978, we’ve found that even minor vibrations during long-distance shipping can affect factory-calibrated settings.
Frame Positioning and Anchoring
Place the machine on a reinforced concrete floor capable of supporting both the static weight and the dynamic loads of a full production cycle. You must use a precision level to ensure the weighing scale remains perfectly vertical. A deviation of just 1 degree can lead to weight inaccuracies exceeding 0.5% per bag. Secure the machine frame using heavy-duty anchor bolts rated for industrial vibration. We recommend leaving at least 36 inches of clearance on all sides of our valve-bag-fillers. This space is necessary for ergonomic operator access and simplifies future maintenance tasks.
Dust Collection and Venting Setup
A clean work environment is essential for operator safety and equipment longevity. Connect the 4-inch or 6-inch dust ports to your facility’s central aspiration system immediately after the frame is secured. You should verify the draw of the dust collector to ensure it captures fines directly at the bag valve. In 2023, updated industry benchmarks suggested maintaining a minimum suction velocity to prevent airborne particles from settling on the machine’s sensitive weighing components.
Check all seals and gaskets on the filling head to prevent product blow-back during the high-speed fill cycle. Adhering to the ANSI/PMMI B155.1-2023 Safety Standard during this installation phase ensures your setup meets the latest requirements for packaging machinery safety. This proactive approach reduces the risk of respiratory hazards and keeps your facility in compliance with modern industrial regulations.
Finally, mount the operator interface (HMI) for optimal visibility. It’s best to position the HMI at eye level, roughly 60 inches from the floor, where it’s protected from physical impacts but remains easily accessible. The bag chair assembly must be adjusted so the operator can seat bags without excessive reaching or bending. Our equipment is Made In The USA and built to last decades, but we’re also your partner in ensuring it’s set up for success from day one. For specific questions about your floor plan, you can contact us for a professional consultation.
Calibrating for Precision and Weight Accuracy
Precision is the cornerstone of a successful packaging operation. Since 1978, Choice Bagging Equipment has focused on engineering systems that deliver repeatable results. When you learn how to install a valve bag filler, you must distinguish between gross weigh and net weigh calibration. Gross weigh systems weigh the product inside the bag as it fills, while net weigh systems pre-measure the material in a dedicated hopper. Both require a zeroed load cell and a multi-point check using certified test weights to ensure the scale remains linear across its entire capacity.
Accuracy directly impacts your bottom line by reducing product giveaway. Once the machine is in place, you’ll need to fine-tune the discharge timing. If the bag releases too early or late, you risk spillage on the bag handling conveyors, which creates maintenance headaches and safety hazards. Following OSHA Process Safety Management Guidelines during these mechanical adjustments protects your operators and maintains a compliant workspace.
Load Cell Protection and Setup
The scale assembly is a delicate instrument. You must verify that all shipping brackets, often painted bright orange for visibility, are completely removed. Leaving these in place will result in "false" weights or can even crush the load cell during a fill cycle. Perform a corner-load test by placing a test weight on different areas of the bag chair to ensure the reading remains identical regardless of bag positioning. You must also isolate the machine from external vibrations. Nearby forklifts or heavy mixers can cause "weight drift," leading to inconsistent fills and wasted product. We build our valve bag fillers to be rugged, but they still require a stable environment for maximum precision.
Feed Rate Optimization
Speed and accuracy often pull in opposite directions, but proper calibration balances both. You should set the initial "bulk feed" rate to handle the first 90% of the fill cycle at high velocity. This maximizes throughput. The final 10% is managed by the "dribble feed," which slows the flow to a trickle for a precise finish. When you’re fine-tuning how to install a valve bag filler, test the auto-tare function repeatedly. This feature ensures the controller ignores the weight of the empty bag, so you only charge customers for the product itself. If you encounter issues during this phase, contact us now to speak with a technician who can guide you through the controller settings. Invest confidently in your setup by verifying these parameters before starting full-scale production.
Integrating Downstream Automation and Safety
Successful integration turns a standalone machine into a cohesive, high-speed production line. Learning how to install a valve bag filler involves more than just bolting the frame to the floor; it requires a precision focus on the downstream flow. The physical footprint must account for the discharge path to prevent bottlenecks. If the transition between the filling spout and the conveyor isn’t seamless, you risk bag breakage or valve leakage. This stage of the installation ensures that the speed of the filler matches the capacity of your end-of-line equipment.
Conveyor Alignment and Transition
You must adjust the discharge conveyor’s height and pitch so it sits exactly at the bag chair’s release point. A drop of even two inches can compromise the valve seal on a 50-pound bag. We recommend incorporating a bag flattener if your palletizing process requires squared bags for stack stability. Ensure your bag handling conveyors are programmed to clear the station within 1.5 seconds of discharge. This timing prevents product buildup that could stall the filler’s cycle. When you understand how to install a valve bag filler properly, you ensure the transition between the spout and the conveyor is seamless and efficient.
Safety Protocol Implementation
Reliability and safety are inseparable in any industrial environment. Every installation must meet OSHA 1910 standards for machine guarding to protect your operators. Verify that all pinch points, especially near the bag kicker and conveyor transitions, are shielded and labeled. Test the interlocking systems to confirm the filler cannot operate if an access door is ajar. Since 1978, we’ve prioritized these fail-safes to protect your team and your investment. Conduct a full safety walkthrough with your production team before running the first live pallet of material.
Synchronizing the filler with robotic palletizing systems is the final step in achieving maximum efficiency. You must test the communication handshake between the two systems using a 24-volt I/O exchange. The filler sends a "bag ready" signal, and the palletizer must return a "clear to receive" confirmation. This digital dialogue prevents equipment collisions and spilled product. Don’t skip the dry-run phase; testing the handshake with empty bags can save hours of cleanup later.
Ready to optimize your production line with a custom-engineered solution? Request a professional integration consultation from our expert team today.
Optimizing Production and Long-Term Support
Successful integration doesn’t end when the last bolt is tightened. Protecting your capital investment requires a proactive approach to maintenance and operation. While knowing how to install a valve bag filler is critical for the initial setup, establishing a preventative maintenance schedule ensures the machine achieves its intended 20 to 30-year lifespan. Regular inspections of wear parts like fill spouts, seals, and gaskets can prevent 85% of unplanned downtime. This long-term strategy shifts your focus from reactive repairs to optimized throughput, ensuring your facility maintains a 99% accuracy rate year after year.
Operator Training and HMI Mastery
Staff competency determines the daily success of your bagging operation. Operators must be proficient with HMI controls to maintain peak efficiency and respond to material variations. We recommend training staff to perform daily "zero-checks" to maintain weight integrity. This simple 2-minute process ensures every bag meets your quality standards and prevents costly product giveaway.
-
Train staff to recognize abnormal vibrations or rhythmic sounds that indicate bearing or motor wear before a failure occurs.
-
Master the HMI to adjust PLC settings for varying product densities and flow characteristics.
-
Document specific setpoints for different materials to allow for fast, repeatable changeovers.
By mastering these controls, your team can reduce changeover times from 30 minutes down to less than 10 minutes. Detailed documentation of PLC settings for every product in your catalog allows for a "set it and forget it" approach that minimizes human error during shifts.
The CBE Advantage: Support Since 1978
Choice Bagging Equipment has provided industrial solutions since 1978. We build machines that last decades by focusing on rugged, simple designs with minimal moving parts. Because our equipment is proudly Made in the USA, you gain the advantage of superior build quality and fast access to domestic parts, often shipped within 24 hours.
A partnership with a manufacturer offering expert field-service ensures your facility remains productive and competitive. If you have questions about how to install a valve bag filler or need specialized technical support for a complex integration, our team is ready to help. Contact us today to discuss your project requirements.
Achieve Peak Performance with Professional Integration
Mastering how to install a valve bag filler requires a disciplined approach to site preparation and mechanical calibration. Success depends on aligning your technical utility requirements with downstream automation to ensure precision weight accuracy on every cycle. Choice Bagging Equipment has been a trusted manufacturer since 1978; we build every machine in the USA to guarantee unmatched durability. If you’re still in the planning phase, use our Bagger Professor tool to identify the ideal machine for your specific material and bag type. Our expert team provides the production line integration support you need to avoid costly downtime and safety risks. We’ve spent over 45 years refining our industrial processes so you can invest confidently in your facility’s future. Our engineers are ready to help you transition from the shipping crate to full-scale production. Let’s build a bagging line that delivers consistent results for decades to come.
Request a Quote for Your Bagging Machine Installation
Frequently Asked Questions
How much compressed air does a valve bag filler actually require?
Most valve bag fillers require between 5 and 15 cubic feet per minute (CFM) at a constant pressure of 80 to 100 PSI. The exact volume depends on your specific model and production speed. For example, an air packer typically consumes 10 CFM per spout during active filling. You must ensure your compressor provides a clean, dry air supply to prevent valve clogs and maintain weighing accuracy.
Can I install a valve bag filler on an uneven floor?
You shouldn’t install a valve bag filler on an uneven surface because it compromises the load cell accuracy and structural integrity. Industrial floors must be level within 0.25 inches over a 10 foot span to ensure the machine remains stable during high speed operation. If your facility floor is uneven, use steel shims or adjustable leveling feet to create a perfectly horizontal base before anchoring the equipment.
Do I need a special foundation for a high-speed bagging machine?
High speed bagging machines typically require a reinforced concrete pad at least 6 inches thick to handle dynamic loads and vibration. Standard 4 inch warehouse slabs often lack the structural mass needed for 24/7 industrial operations. We recommend a 3,000 PSI concrete mix reinforced with #4 rebar on 12 inch centers to provide a reliable foundation that prevents machine shifting over years of use.
What is the most common mistake during valve bag filler installation?
The most frequent error is improper grounding of the electrical system, which leads to erratic weighing results and component failure. When learning how to install a valve bag filler, technicians often overlook the dedicated ground wire required for sensitive load cells. Static electricity buildup from dry powders can also interfere with digital controls if the machine isn’t bonded correctly to the facility’s main grounding grid.
How often should I recalibrate the weighing scales after installation?
You should perform a calibration check every 30 days or after every 50,000 bags filled to maintain precision. For high accuracy applications, daily zeroing of the scale is standard operating procedure. Our equipment is built for reliability, but environmental factors like temperature shifts or dust accumulation can cause minor drift. Regular testing ensures your weights remain within the 0.5% tolerance required for most industrial standards.
Can a valve bag filler be integrated with an existing robotic palletizer?
Yes, modern valve bag fillers integrate seamlessly with robotic palletizers using standard PLC protocols like EtherNet/IP or Modbus. You’ll need a downstream conveyor system with a bag flattener to prepare the product for the robot’s end of arm tool.
What electrical certifications are required for industrial bagging equipment in the US?
Industrial bagging equipment must comply with UL 508A standards for industrial control panels and NFPA 70 (National Electrical Code) requirements. In hazardous locations where combustible dust is present, machines must meet Class II, Division 1 or 2 specifications. Choice Bagging Equipment has provided UL listed components since 1978, ensuring every installation meets local safety codes and passes rigorous fire marshal inspections.
How long does a typical professional installation take?
A standard professional installation usually takes 3 to 5 business days from arrival to final commissioning. This timeline includes mechanical assembly, electrical wiring, and the calibration of the weighing system. We also spend the final 8 hours training your operators to ensure they understand the safety protocols and maintenance schedules. For a detailed project timeline, contact us to speak with an integration specialist.
