Troubleshooting Valve Bag Fillers: A Professional Guide to Restoring Peak Performance

Last Tuesday, a production supervisor in Texas realized that erratic bag weights had caused a 14% spike in material overfill, leading to a full shift of lost productivity. You know that inconsistent performance doesn’t just waste product; it damages your reputation with every shipment. When your machinery drifts from its original specifications, the resulting dust and downtime can feel like an unsolvable puzzle. Masterful troubleshooting valve bag fillers is about moving beyond guesswork to find concrete solutions that keep your line running smoothly.

Since 1978, we’ve focused on delivering the durability and performance you expect from American-made equipment. This guide provides the technical insights you need to diagnose common mechanical failures and restore your bagging accuracy. We’ll walk through a proactive maintenance strategy designed to eliminate unplanned stops and maximize your throughput. If you need a machine built for your specific application, our Bagger Professor tool is available to help you evaluate your options. As your long-term partner, we’re committed to your success. To discuss your specific technical challenges, contact us for expert support.

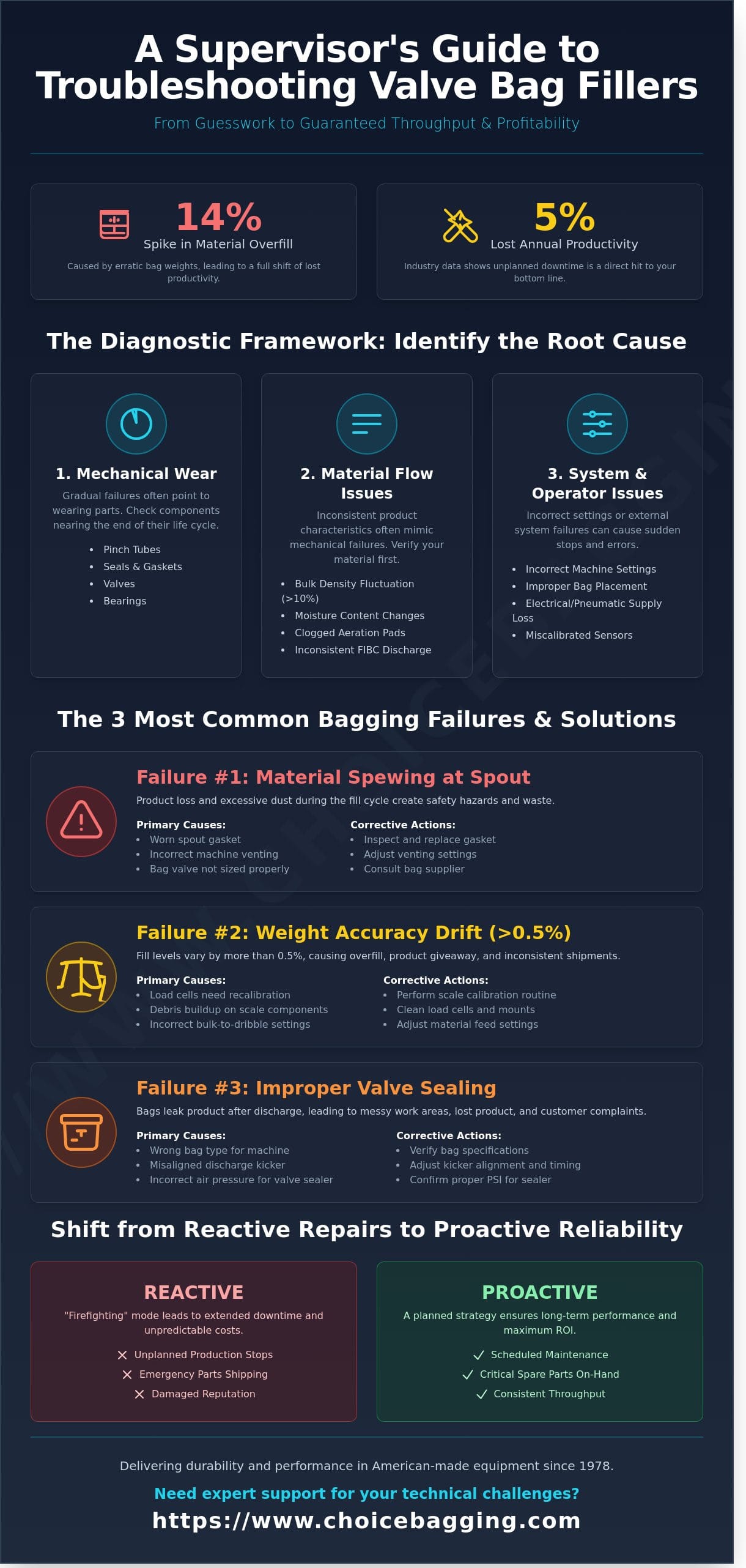

The Diagnostic Framework: Identifying the Root Cause of Bagging Inefficiency

Downtime on a production line isn’t just an inconvenience; it’s a direct hit to your bottom line. When a valve bagger sits idle, the ROI of your entire facility drops. Industry data suggests that unplanned downtime can cost manufacturers up to 5% of their annual productivity. Effective troubleshooting valve bag fillers requires a disciplined approach to separate minor glitches from systemic failures. You must first determine if the issue stems from mechanical wear, inconsistent material flow, or human error.

To better understand this concept, watch this helpful video:

Start your inspection with the basics. Verify that your air pressure remains steady at the manufacturer’s recommended levels, often between 80 and 90 PSI. Fluctuations here cause erratic cylinder movement. Examine your material supply. If you’re sourcing product from Flexible Intermediate Bulk Containers (FIBCs), ensure the discharge rate is consistent and free of clumps. Gradual failures often point to wearing parts like pinch tubes or seals, while sudden stops usually indicate electrical or pneumatic supply interruptions.

The “Big Three” Valve Bagging Problems

Most operators encounter three primary hurdles. First is material spewing at the spout, which usually indicates a worn spout gasket or incorrect venting. Second is weight accuracy drift. If your fill levels vary by more than 0.5%, your load cells might need recalibration or cleaning. Finally, valve sealing failures after discharge lead to product loss and messy warehouses. These issues often stem from using the wrong bag type for the machine’s configuration or a misaligned discharge kicker.

Establishing a Troubleshooting Log

Reliability depends on data. Keep a log of every error code and the frequency of “nuisance” trips. Tracking these patterns helps you differentiate between a one-time electrical surge and a mechanical component reaching the end of its life cycle. You can use the Bagger Professor tool to verify if your current machine is still the right match for your material’s density and flow characteristics. If you find your equipment is consistently underperforming despite these checks, Contact us for a professional evaluation. Since 1978, we’ve helped processors maintain peak efficiency through expert support and durable American-made equipment. Consistent troubleshooting valve bag fillers ensures your operation remains profitable and safe.

Mechanical & Material Flow: Troubleshooting Air and Impeller Fillers

Successful troubleshooting valve bag fillers starts with a deep understanding of your material. Bulk density and flowability dictate how your equipment performs every hour. Since 1978, we’ve seen how a 5% change in moisture content can stall a previously efficient production line. You must verify these characteristics before adjusting mechanical settings, as material variations often mimic mechanical failures. If your product’s density fluctuates by more than 10%, fill weights will naturally vary regardless of machine calibration.

Pneumatic System Failures

Pneumatic packers rely on consistent fluidization to move product. If your bag weights are inconsistent, check the aeration pads first. Clogged pads or moisture in the air lines prevent proper material flow and lead to sluggish cycles. Ensure your primary air regulators maintain a steady pressure; even a 2 PSI drop can disrupt the fill cycle and cause weight inaccuracies. Inspect pinch valves for wear regularly. A valve that doesn’t seal completely allows material to bypass the scale, which often results in overfills.

While performing these mechanical checks, refer to the CDC Bagging Ergonomics Audit to ensure your maintenance procedures don’t compromise operator safety or increase physical strain. Proper maintenance of air lines also reduces the noise levels and vibration that contribute to operator fatigue. Identifying leaks in the pressure chamber or discharge manifold early prevents the air loss that starves the system of the energy required to move heavy powders.

Impeller and Gravity Feed Issues

Impeller fillers are high-speed workhorses, but they’re susceptible to abrasive wear. Inspect your impeller blades every 500 operating hours for thinning or pitting. A blade worn down by just 1/4 inch can reduce filling speed by 20% and cause significant turbulence in the product stream. Material buildup on the internal housing also creates friction, leading to unnecessary motor strain and heat generation.

• Blade Inspection: Look for rounded edges that fail to “throw” the material efficiently.
• Surge Hopper Flow: Troubleshooting inconsistent material feed often reveals bridge-over in the hopper.
• Vibration Solutions: Installing a bin vibrator helps manage material that packs tightly above the inlet.

Material bridging in the surge hopper often starves the valve bag filler, causing the machine to run “dry” and increasing wear on internal components. If you’re unsure if your current setup matches your material’s flow characteristics, the Bagger Professor tool helps you identify the right configuration for your specific product needs.

Achieving Weight Accuracy and Proper Valve Sealing

Scale and Load Cell Calibration

Reliable results depend on the integrity of the digital scale controller and its load cells. Start your maintenance routine by zeroing the scale and checking for mechanical interference. Binding occurs when a stray bolt, hardened material, or even a tight air hose prevents the scale frame from moving freely. This often causes “ghost weights” where the scale reads inaccurately.

You should also calibrate the “pre-act” or “in-flight” compensation. This accounts for the material that has left the feeder but hasn’t landed in the bag yet. If your weights are consistently high by 0.2 pounds, your pre-act setting needs adjustment. While software configuration errors are common, a failing load cell usually shows its age through erratic readings or a failure to return to a stable zero. Since 1978, we’ve found that 85% of weight issues stem from mechanical binding rather than electronic failure.

Optimizing the Bag-to-Spout Interface

A secure connection between the bag and the spout prevents material loss and ensures the valve closes correctly. Bag construction plays a major role here. Paper bags provide more rigidity, while poly bags are more flexible and prone to “necking” under the weight of the product. If the bag chair isn’t positioned to support the full weight, the valve will stretch and fail to seal properly.

Troubleshooting the “spew,” which is material escaping during the discharge cycle, requires looking at the spout fit. If the spout is too small for the bag valve, product will blow back through the gap. This dust creates significant bag sealing problems by contaminating the valve area before it can close. You can use the Bagger Professor tool to verify you’re using the correct spout diameter for your specific bag type. If you continue to see material escaping or experience sealing failures, contact us to discuss a custom spout solution or mechanical adjustment.

Automation, Sensors, and Preventing “False Starts”

A “false start” occurs when the filling cycle initiates before the bag is fully seated on the spout. This error results in immediate product spillage and significant downtime for cleanup. In high-speed operations, a single false start can waste 50 pounds of material in seconds. Reliable bag-on-spout sensors prevent this by acting as a hard interlock. If the sensor doesn’t detect a properly placed bag, the valve doesn’t open. When troubleshooting valve bag fillers, technicians often find that “ghost” signals or failed starts stem from a lack of communication between the filler and the robotic arm. Automated systems require precise handshakes. If the robot releases the bag 0.5 seconds too early, the sensor may miss the sleeve entirely.

Integrating automated bagging systems requires a deep understanding of sensor logic. These systems rely on constant feedback to maintain throughput. When a sensor fails to trigger, it’s often not a mechanical breakdown but a signal interruption. We’ve seen that since 1978, the most reliable systems are those where the automation and the filler operate as a single, cohesive unit rather than two separate machines. Our role as your partner is to ensure these interfaces are seamless and dependable.

Sensor Alignment and Maintenance

Dust buildup is the primary cause of sensor failure in dry bulk environments. Optical infrared sensors can lose 40% of their signal strength when coated in fine particulates. We recommend a daily cleaning schedule using compressed air to maintain clarity. Ultrasonic sensors provide a robust alternative for dusty environments because they rely on sound waves rather than light. You should also check for vibration-related drift. On lines running at 12 bags per minute, constant mechanical oscillation can loosen mounting brackets. This shifts the sensor’s field of view by just a few millimeters, which is enough to halt production. Verify the timing between the bag kicker and the discharge cycle to ensure the bag clears the sensor path before the next cycle begins.

Integration with End-of-Line Equipment

Smooth throughput depends on how the filler communicates with downstream components. If the bag handling conveyors aren’t synchronized, bags may bunch up or deform. A deformed bag is difficult for a robotic palletizing system to stack securely. Proper bag shaping starts at the discharge point. If the conveyor moves too fast, the bag flops; too slow, and it tips. Since 1978, we’ve observed that maintaining a consistent 1:1 speed ratio between the kicker and the takeaway belt reduces bag breakage by 15%. If you’re unsure which configuration fits your material, the Bagger Professor is a functional tool that helps identify compatible equipment based on your specific bag type. Effective troubleshooting valve bag fillers involves looking past the spout to ensure the entire line is balanced.

Proactive Maintenance: Ensuring Long-Term Reliability

Effective troubleshooting valve bag fillers starts before a breakdown occurs. Transitioning from reactive repairs to a structured preventative maintenance program can reduce unscheduled downtime by as much as 25% annually. While it’s tempting to wait for a component to fail, this approach often leads to emergency shipping costs and lost production hours. By anticipating wear, you protect your throughput and your bottom line.

Maintaining a robust inventory of critical spare parts is essential for consistent operation. We recommend keeping fill nozzles, inflatable seals, and solenoid valves on site at all times. Because Choice Bagging Equipment manufactures machines that are Made in the USA, parts availability is a distinct advantage for our partners. You won’t face the 4 to 6 week lead times common with overseas manufacturers. Securing genuine components through our parts department ensures every replacement meets original factory specifications for fit and durability.

Creating a Daily and Weekly Inspection Checklist

Consistency is the foundation of reliability. Operators should perform daily checks on valve bag fillers to identify minor issues before they escalate into major failures. A disciplined approach to machine health involves several key steps:

• Lubricate pivot points and inspect wear plates for thinning every 40 hours of operation.
• Test safety interlocks and emergency stop circuits daily to ensure 100% compliance with safety standards.
• Monitor air filter regulators for water or oil contamination, which can degrade pneumatic cylinders over 12 months of use.

Partnering for Performance

Choice Bagging Equipment serves as more than a supplier; we’re your long-term partner in production. Scheduling annual machine audits through our field service team provides a professional perspective on equipment health. Our technicians identify subtle patterns that standard troubleshooting valve bag fillers might miss, such as micro-leaks in air lines or slight calibration drifts in load cells.

If your equipment requires frequent, complex repairs that exceed 15% of the machine’s value annually, it’s likely time to evaluate an upgrade. You can use the Bagger Professor tool to identify modern machines that match your current material and bag types. When troubleshooting reveals that a machine has reached its end of life, contact us to discuss integration options. We’ve helped clients since 1978 maintain peak performance through expert consultation and dependable support.

Protect Your Production with Expert Maintenance

Restoring peak performance requires a systematic approach to mechanical flow and sensor calibration. When you master the nuances of air and impeller fillers, you eliminate the bottlenecks that stall your operation. Maintaining weight accuracy and valve integrity isn’t just about daily output; it’s about protecting your bottom line through precise material handling. Effective troubleshooting valve bag fillers involves identifying root causes before they lead to costly downtime. Choice Bagging Equipment has been a trusted manufacturer since 1978. We provide machines built to last decades in the most demanding industrial environments. Our engineering team offers expert support for complex production integration to ensure your system remains reliable. If you’re still refining your setup, the Bagger Professor tool helps you identify the right equipment for your specific material needs.

Need expert help? Contact our support team for specialized valve bag filler assistance.

Your path to seamless, high-speed bagging is well within reach and we’re ready to help you get there.

Frequently Asked Questions

Why is my valve bag filler consistently overfilling or underfilling?

Inaccurate weights usually stem from improper bulk or dribble feed settings or scale interference. Check the cut-off gate for debris that prevents a clean closure. If the scale displays 0.5 lbs of variance, inspect the load cell mounts for binding. Choice Bagging Equipment has engineered these systems for precision since 1978. Consistent weight ensures you don’t lose 2% of your product to giveaway.

How do I stop material from spewing out of the valve during discharge?

Material spewing occurs when the bag isn’t properly sealed against the filling spout or when the internal pressure isn’t vented. Ensure the inflatable spout seal is pressurized to 20 PSI to create a dust-tight connection. If you’re troubleshooting valve bag fillers, verify that the dust collection system pulls at least 150 CFM of air. This prevents product loss and keeps your facility clean.

What causes a “false start” on an automated valve bagger?

A false start is typically triggered by a faulty bag-on-spout sensor or an incorrect signal from the PLC. If the proximity switch is more than 3 millimeters from the target, the machine won’t initiate the fill cycle. Clean the sensor lens every 8 hours to prevent dust buildup from blocking the infrared beam. This simple maintenance step ensures your automated line maintains its 99% uptime rating.

How often should I calibrate the load cells on my bagging machine?

You should calibrate your load cells every 6 months or after any major mechanical impact to ensure 0.1% accuracy. Frequent calibration is necessary if your facility experiences temperature fluctuations of more than 20 degrees Fahrenheit. Use certified test weights that match 50% of your typical bag weight for reliable results. If you need technical support, contact us to speak with an expert.

Can moisture in my compressed air lines affect bagging accuracy?

Yes, moisture in compressed air causes pneumatic cylinders to stick, which leads to inconsistent gate timing and weight errors. Water droplets can degrade solenoid valves within 90 days of operation if not filtered. Install a refrigerated air dryer to maintain a dew point of 38 degrees Fahrenheit. This protects your investment and ensures the high-quality performance you expect from a trusted manufacturer.

Why are my bags palletizing poorly even though the weight is correct?

Poor palletization often results from trapped air inside the bag rather than incorrect product weight. If a bag contains 15% excess air, it becomes unstable when stacked. Adjust your de-aeration probe settings or increase the vibration cycle by 2 seconds to densify the material. For help selecting the right equipment for your specific material, try the Bagger Professor tool.

What are the most common wear parts on a pneumatic valve bag filler?

The fill tube, pinch valves, and spout seals are the three components that require the most frequent replacement. In abrasive applications, a standard steel fill tube may wear out after 50,000 bags. We recommend inspecting these parts every 30 days to prevent unexpected downtime. Keeping a 10% safety stock of these items ensures your production line remains reliable and efficient.

How do I know if the problem is the bag quality or the machine settings?

Isolate the issue by testing a single batch of bags from a different 1,000-unit pallet to see if the error persists. If the failure rate drops from 5% to 0%, the issue is likely bag sizing or valve construction. When troubleshooting valve bag fillers, check that the bag valve length matches your spout within 0.25 inches. Proper bag fit is essential for achieving unmatched reliability.
