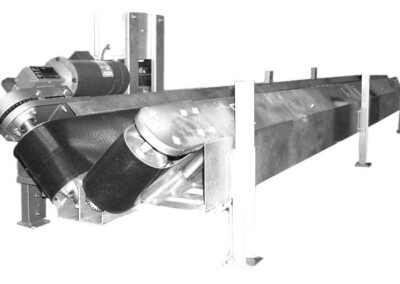

308 Series “V-Trough” Closing Conveyors
The 308 Series “V-Trough” Closing Conveyor is designed for sewn or pinch bottom bagging operations. The 45 degree “V” shape cradles and holds the bag vertically in place, while conveying the bagged product to the closing head. The 308 Series is available in 8, 10, and 12 foot models, with vertically adjustable conveyors from 14 to 32 inches up and down, accommodating many bag sizes. The back rail can be adjusted in or out for vertical bag stabilization, while bags are being conveyed to the sewing head. 8 inch, 3 ply belts are driven on standard lag pulleys, using a 1/2 horsepower motor with dust proof wiring. The standard belt speed is 40 feet per minute, with other speeds available.
(220/440V / 3 Ph / 60 Cycle Electricals Standard)
All CBE bag handling conveyors are constructed with 6” structural C-channel with powder-coated frames and have heavy-duty wire mesh carrying belts for use in the most demanding industrial environments.
