The Model 1000 Hot Air Sealer provides efficient, cost effective sealing for non-gusseted pillow style polyethylene (PE), polypropylene (PP) open mouth bags. It produces sift resistant bag closure for a wide array of products from compost and soil, fertilizer, industrial chemicals, at rates of up to 20 bags per minute.
How the Model 1000 Works:
As a filled bag moves along a conveyor, the bag top is manually or automatically formed and fed into the entrance guide of the Model 1000. The bag enters a heated manifold section of the sealer that blows hot air on both sides of the bag under regulated pressure and temperature. The bag top then passes through a series of compression rollers to compress the poly walls of the bag together to make the seal closure.
The Model 1000 Hot Air Sealer is a heavy duty bag closing machine that requires minimum maintenance and provides high reliability without the use of bands or other consumable parts.
Model 1000 is stocked to ship, click for details.

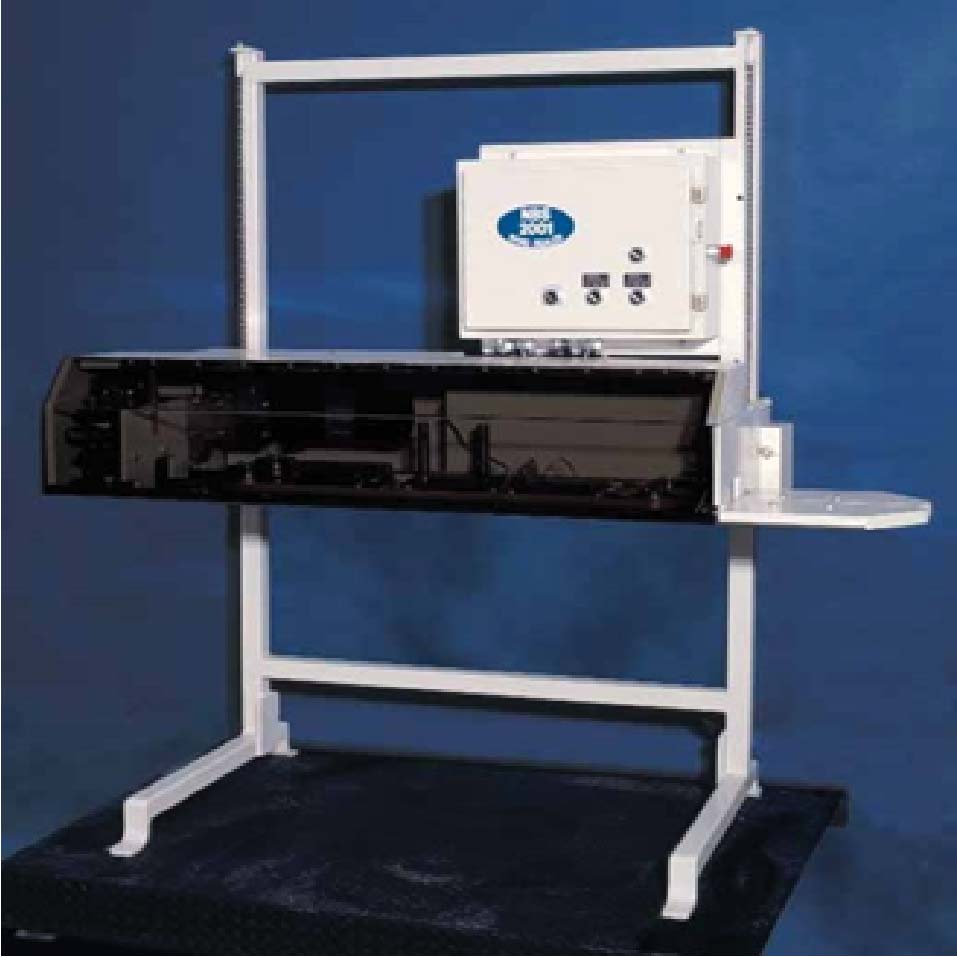

Model 2001 continuous band sealer is designed for high production in harsh industrial bagging operations closing polyethylene and polypropylene gusseted bags and pillow style bags at rates of up to 25 bags per minute. The Model 2001 can be integrated into both manual and automatic bagging lines. This low maintenance band sealer features higher heat generation than comparable models and a cooling section standard to allow for faster bag handling after sealing and easily accessible band replacement. The 2001 can also be upgraded with a bag top trimmer, bag coder, and stainless steel construction for harsh working environments.
Proper Application Examples: Sealing Pre-Formed, Gusseted Poly Film Bags
- Closes Up to 20 bags per minute
- Bag Types: 2-12 Mil pre-formed, poly film open mouth bags
- Control Air 80 PSI at 1 CFM
Model 6000 is stocked to ship, click for details.
Proper Application Examples: Sealing Pre-Formed Paper Bags with Pre-Applied Glue Strip (Pinch Bottom Style)
- Closes Up to 20 bags per minute (up to 70 ft/minute continuous seal speed)
- Bag Types: Stepped end multi-wall PBOM open mouth bags (paper bag with pre-applied glue strip)
- Control Air: 60 PSI

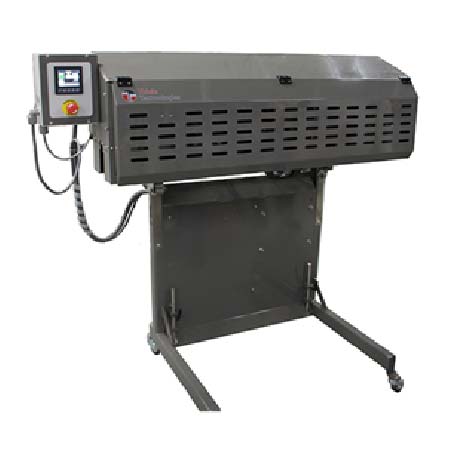

Model 4600 is stocked to ship, click for details.
Types of Bag Sealers
There are several types of bag sealer options available, depending on the type of paper or plastic used to construct the bag. For bagging needs without any pre-glued flaps, CBE offers bag sewing machines. There are several types of bag sealer options available, depending on the type of paper or plastic used to construct the bag. For bagging needs without any pre-glued flaps, CBE offers bag sewing machines.
Paper Bag Sealer Machine
A paper bag sealing machine system is designed to seal “pinch bottom,” multi-wall, open-mouth paper bags with a pre-glued flap. The pinch bottom sealer heats the glue to its melting point, and then folds it over and pinches it against the opposing wall of the bag to produce a secure sift-proof bag closure.
Plastic Bag Sealer Machine
A plastic bag sealing machine is used when a poly based bag needs to be hermetically sealed. CBE offers a full line innovative bag sealing systems, including both hot air and rotary band sealers, to quickly and easily close PE, PP, Tyvek, Polymylar, foil and nylon bags. For flat or pillow style bags, we recommend a hot air sealer, while band sealers are the preferred choice for gusseted bags.
Have More Questions About Our Bag Sealer Machine Options ?
Discover all the bag sealing materials and equipment you need today, by contacting CBE for more information on what solution is most appropriate for your business.
