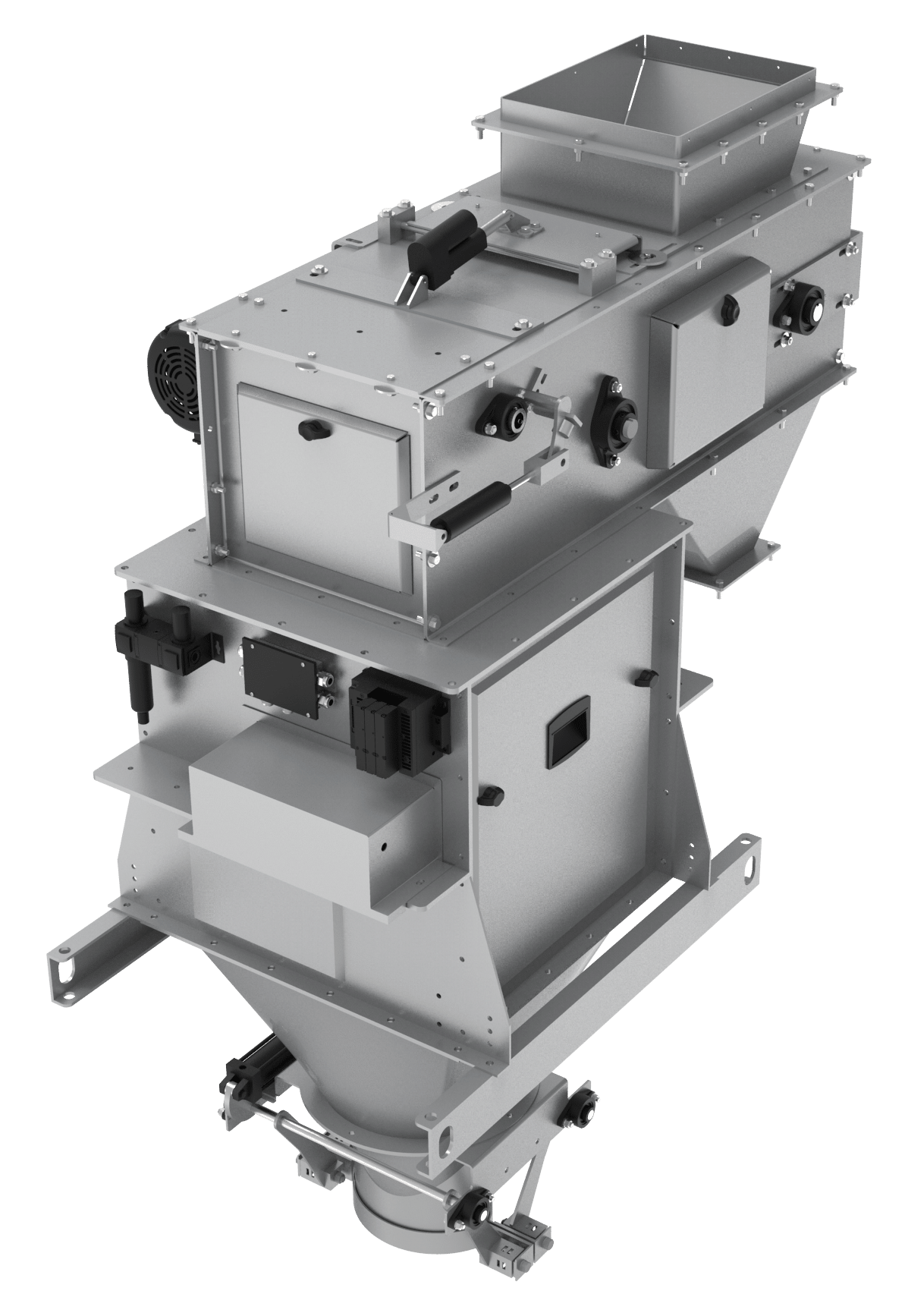

Model NWB Net Weigh Filler

Versatile Net Weigh Filler for Packaging 20-110# (9-50KG) Bags, Boxes, Drums and Pails with Free Flowing Granular & Pelleted Materials at a Rate of 1-25 Units per Minute.

Examples of Proper Application Include:
• Fertilizer, Corn, Soybeans, Salt, Sugar
• Sand, Limestone, Refractory Materials, Plastic Pellets

cbe NWB open mouth bag filler 2 transparent sm
cbe NWB open mouth bag filler 1 transparent 2 sm
cbe NWB open mouth bag filler 2 transparent sm
cbe NWB open mouth bag filler 1 transparent 2 sm
Click to Watch This Video
Click to Watch This Video
Click to Watch This Video

Examples of Proper Application Include:

Food

Corn, Soybeans, Salt, Sugar

Chemicals

Fertilizer

Minerals

Sand, Limestone, Refractory Materials, Plastic Pellets

Operation:

The NWB Series Net Weigh Filler product flows using gravity, from the supply hopper bin, into the product feed inlet at the top of the machine. The machines automatically load product into an internal weigh hopper, in preparation for the next bag fill cycle. The NWB Series is an automatic net weigh filler, that pre-weighs material before discharging it into a bag or other container.

Technical Specifications:

Weight range – 20-110 lb. (9-50KG) Open Mouth Bags

Typical scale weight accuracy – +/- .5-1% of target weight

Fill rate – 1-10 bags per minute (depending on product characteristics & bag sizing)

Process air – 80 PSI @ 1 CFM per bag fill cycle (base model does not require air)

nwb

STANDARD FEATURES:

Mild steel contacting surfaces

2.0, 3.0 & 4.0 Cu foot capacity weigh Hopper (sized per application requirements)

Foot pedal start actuator

Air operated bag clamp

Digital load cell weighing

Gravity gate material inlet

Variable flow gate

17” -32” Circumference center grip fill spout (sized per customer requirements)

STANDARD OPTIONS:

SS-Simplex - upgrade CM simplex (M/S) w/ 304 S/S material contacting surfaces

MS Duplex - upgrades CM simplex to CM duplex w/ M/S material contacting surface

DT – Air operated dust tight fill spout

MS-BF14 – Price adder for 14” belt feeder (one required for each scale assembly)

SS-BF14– price adder for 14” belt feeder w/ 304 S/S contact,USDA belt & seals (1 required for each scale)

SS-BIN - 100 Cubic feet supply hopper for sectional (3 Piece) CM net weigher w/ support structure, access platform & ladder, bolt-on lid, Lo/Hi bin level indicators all controls pre-wired (304 S/S)

MS-TW-AUG – price adder for variable speed twin auger feeder w/ 3 HP drive & hinged drop bottom (M/S)

SS-TW-AUG - price adder for variable speed twin auger feeder w/ 3 HP drive & hinged drop bottom (304 S/S)

MS-BIN - 100 cubic feet supply hopper for sectional (3 Piece) CM

Net weigher with support structure, access

MS-BIN - 100 Cubic feet supply hopper for sectional (3 Piece) CM
