Heavy-Duty Auger Open Mouth Bag Filler
Model 2500
The Heavy-Duty Model 2500 Auger Open Mouth Bag Filler is an easy to use, dependable, durable machine designed to bag a large variety of abrasive powders. It is constructed with continuously welded thick wall box steel tubing for rugged and continual use. A dust tight bag filling clamp securely grips bag tops to prevent dusting during the bag filling cycle. It has a heavy-duty auger feeder with low maintenance shaft seals to reliably feed product into bags. The machine is self-standing and easily made portable for use in multiple locations. It has a low head height and requires little space in the production facility. A side access door is protected by a safety switch for harm free clean out and inspection of the interior of the auger feeder.
Click Images for Larger Views

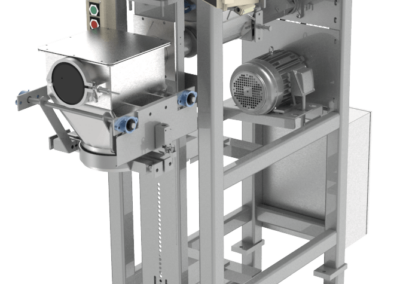

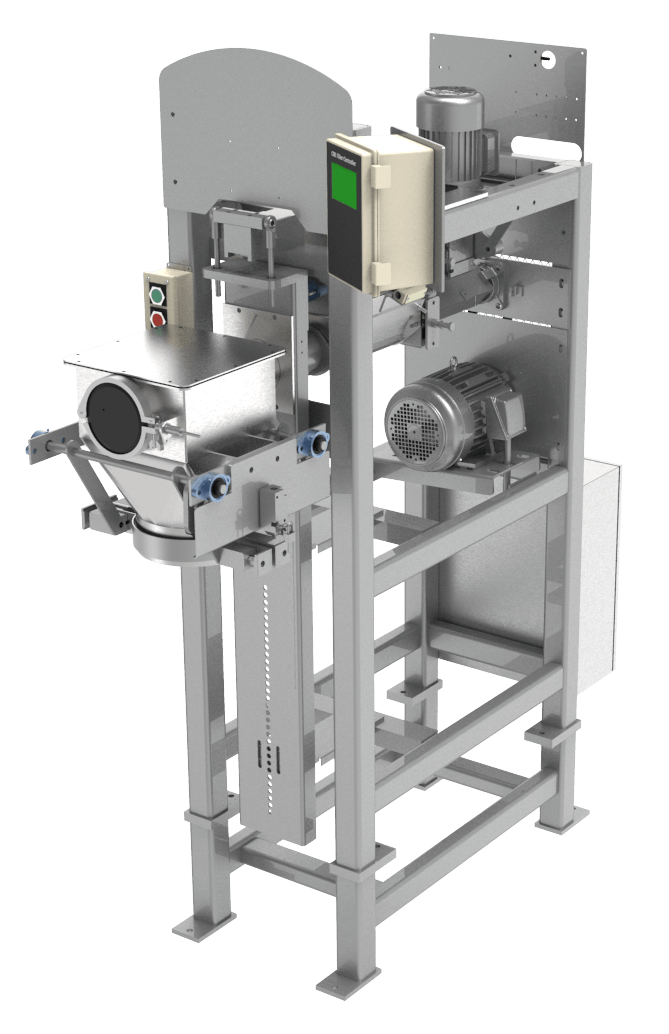

Model 2500 Front Right View

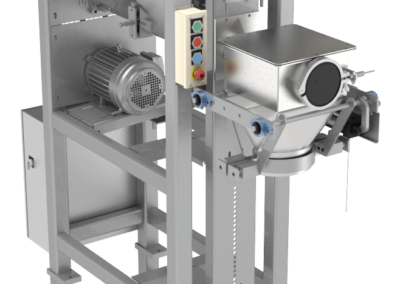

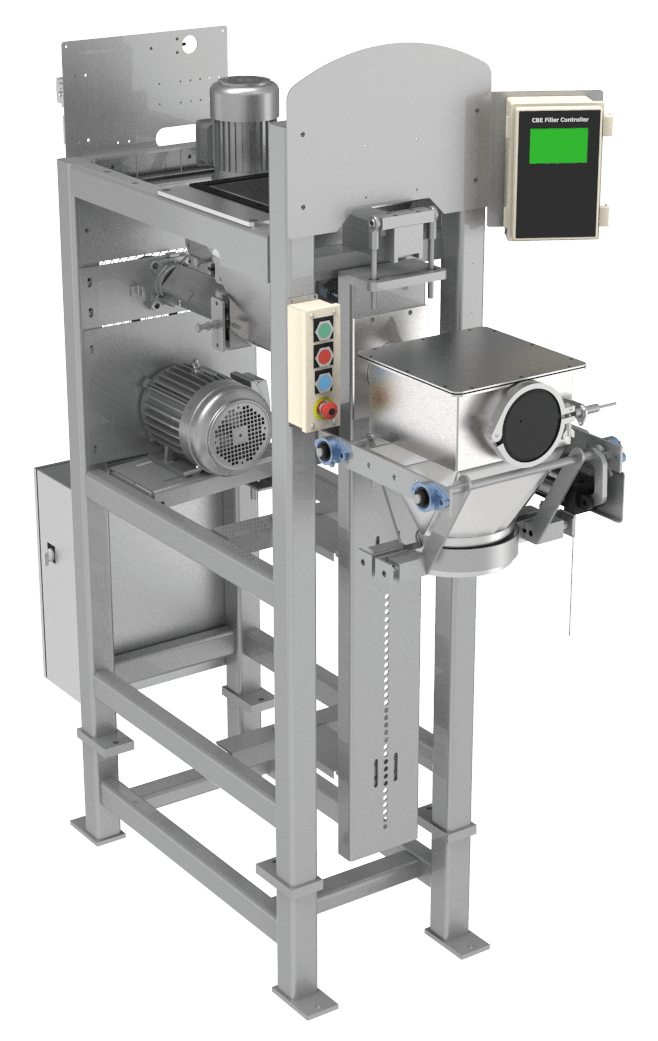

Model 2500 Front Left View

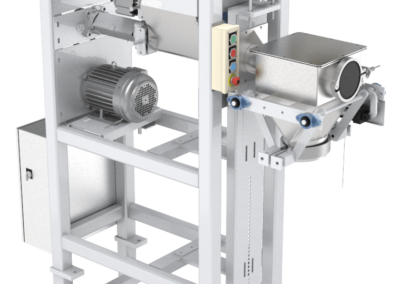

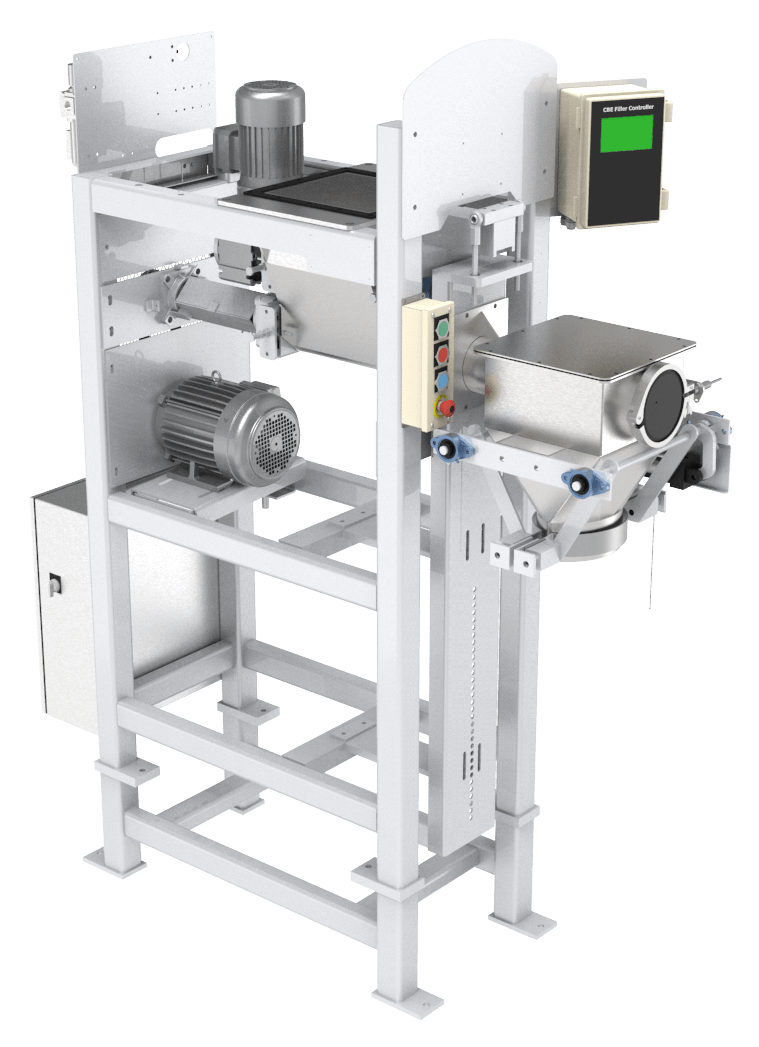

Model 2500 Left View

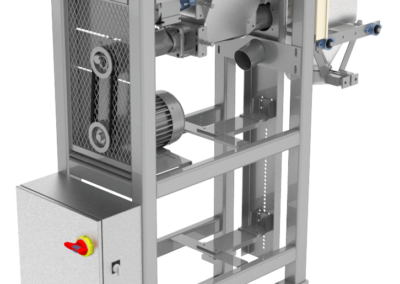

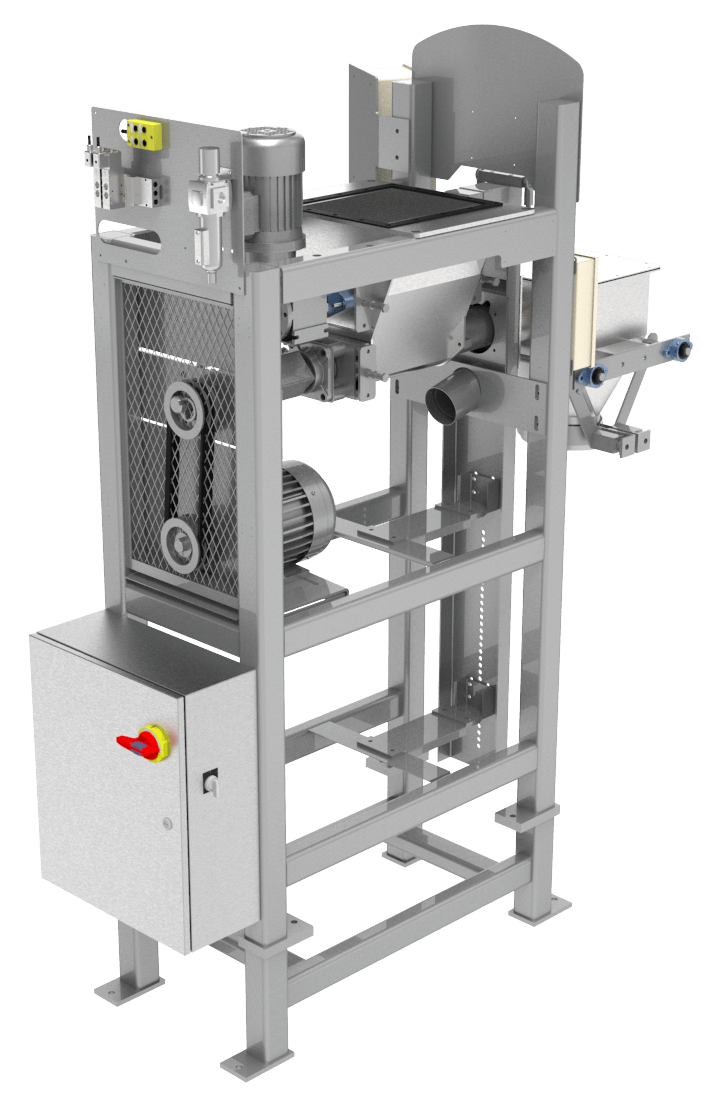

Model 2500 Rear Right View
Click to View Videos
Model 2500 Bagging, Sealing & Transporting via Conveyors to Robotic Palletizer
Model 2500 Bagging & Sealing
Model 2500 Quick Change Auger Assembly
Examples of Materials Bagged with this Machine
Mineral powders, cement powders, plaster, pigments, graphite
Powders
Specifications:
Mineral powders, cement powders, plaster, pigments, graphite
Production rate: 1-4 bags per minute (material and bag size dependent)
Material density range: 20-75 lbs. (9-34 kg) per cubic foot
Operating modes: Semi-automatic (operator assisted)
Bag types: Gusseted and non-gusseted paper, paper, plastic film, and poly woven bags
