Model 400 HP Bag Sewing System

The heavy-duty 400 HP Bag Sewing System is easy to operate and delivers quality performance at twice the speed of hand-held portable bag closers. Operating at line speeds of up to 55 linear feet per minute, the 400 NS efficiently and reliably closes a variety of bags including multi-wall paper, woven and laminated woven polypropylene.

The 400 NS features a self-lubricating sewing head and an adjustable-height pedestal with casters and leveling jackscrews.

Technical Capabilities:

• Closes up to 20 bags per minute
• Bag types: multi-wall paper, woven & laminated woven polypropylene open mouth bags
• Control air 80 PSI  at 1 CFM
• Electrical requirements – 220 volt, 380 volt, 440 volt or 575 volt / 3 phase / 60 cycle

Model 400 HP Bag Sewing System Options:

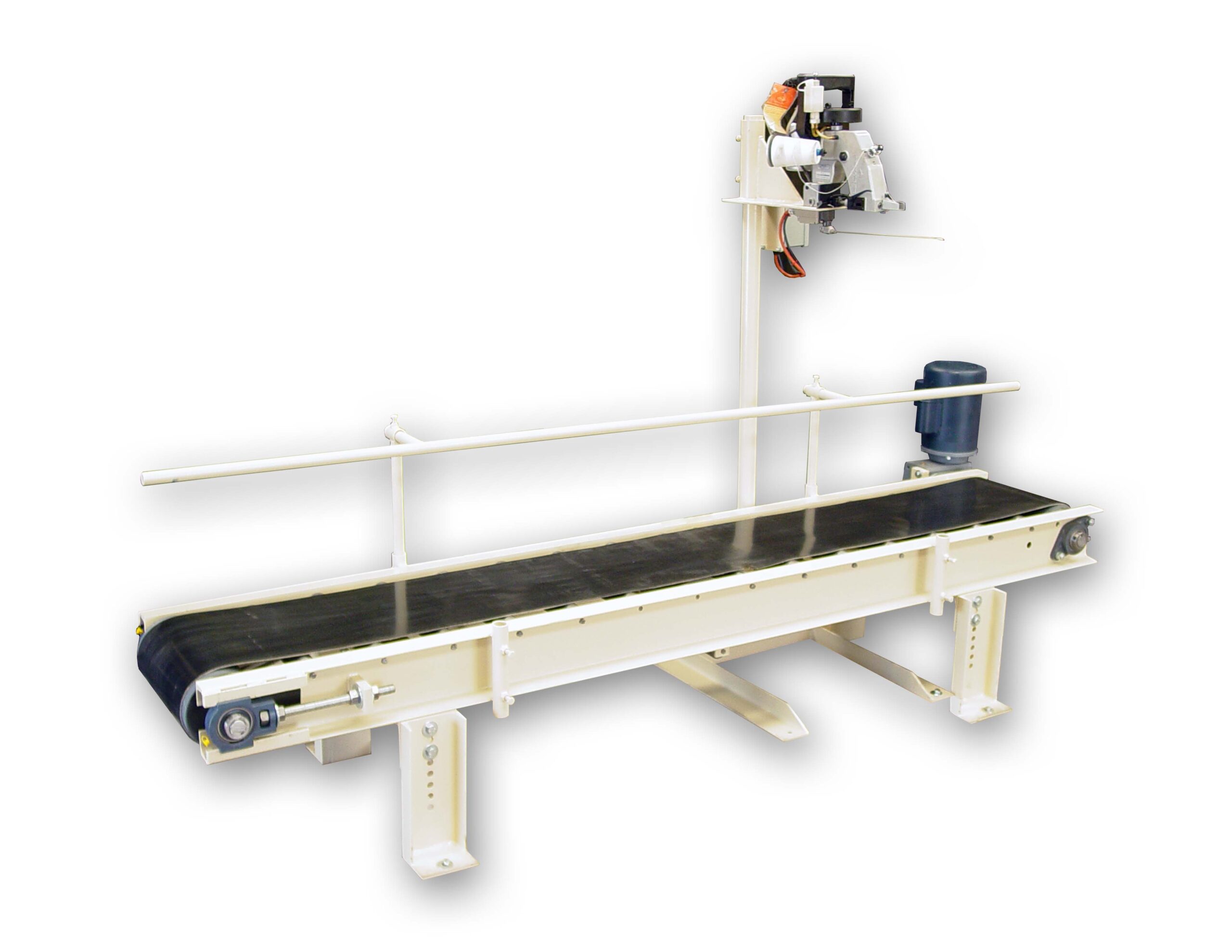

• 307 Series Bag Closing Conveyors
• 308 Series “V-Trough” Bag Closing Conveyors
• 304 Series Incline Bag Flattener Conveyors
• Robotic Bag Palletizing Systems
